iTrailer

KEY FEATURES

Easy Deployment

• Compact design

• Low maintenance

• Compatible with multiple EV models

Reliable Protection

Stable operation

Weather-resistant design

Practical Performance

• 30kW DC output

• LiFePO4 battery system

• Intelligent monitoring

MAIN PARAMETERS

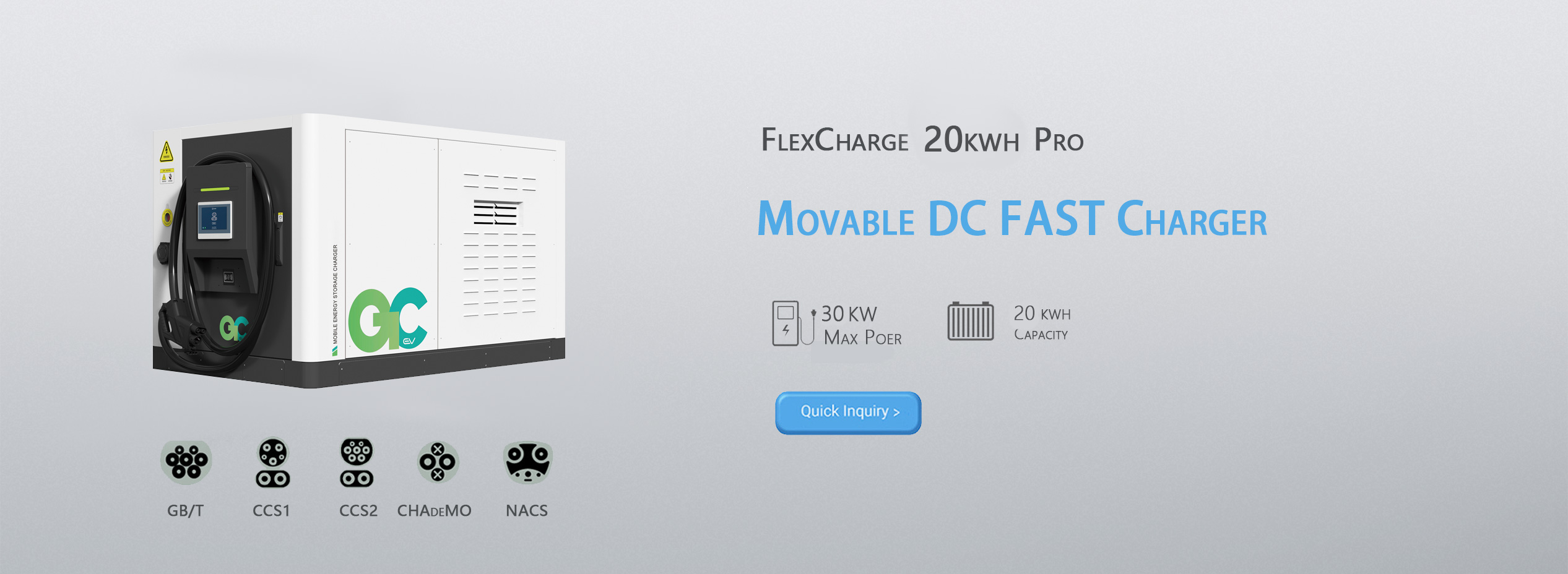

  • 20kWh Compact Mobile Charging

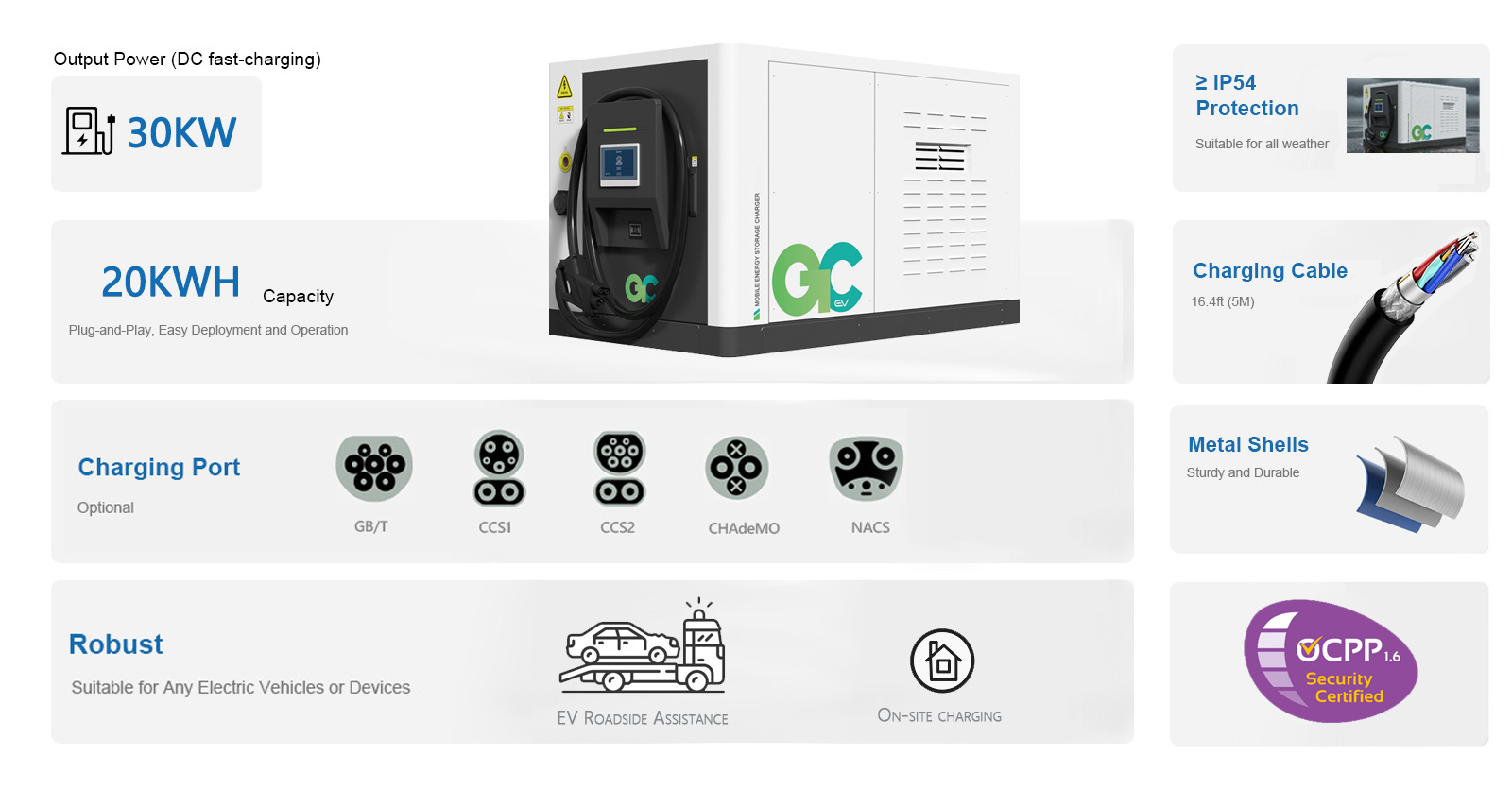

    Compact 20kWh mobile EV charger with 30kW DC output for roadside assistance, temporary charging, event support, and emergency backup.

    charging vehicle





    • 20kWh Battery | 30kW DC Output | CCS1 / CCS2 Available | DC 200–850V

    • 20kWh battery capacity with 30kW DC output

    • Compact design for easy deployment

    • Suitable for roadside and temporary charging

    • CCS1 / CCS2 connector options

    • Flexible charging support where fixed stations are limited











    Main Parameters

    Category

    ltem

    Technical Parameters

    Charging pile parameters Rated power 20kWh
    Temperature control scheme Air cooling
    Charging gun output power 30KW
    Charging gun output current 0-100A
    Charging gun output voltage range (Vdc) DC200V~1000V
    Communication protocol OCPP 1.6J
    Charging method DC input 30KW
    AC input  Optional parts
    Other parameters Operating temperature range -30℃~55℃
    Protection level ≥IP54
    Dimensions (L*W*H) 1700*1030*1023mm
    Weight 500Kg
    Payment system OCPP1.6J
    Gun line length 5M
