Heavy-Duty Charging
KEY FEATURES
Reliable Operation
Liquid cooling system
IP54-rated protection
Flexible Deployment
For fleets and temporary sites
Suitable for off-grid support
MAIN PARAMETERS
-

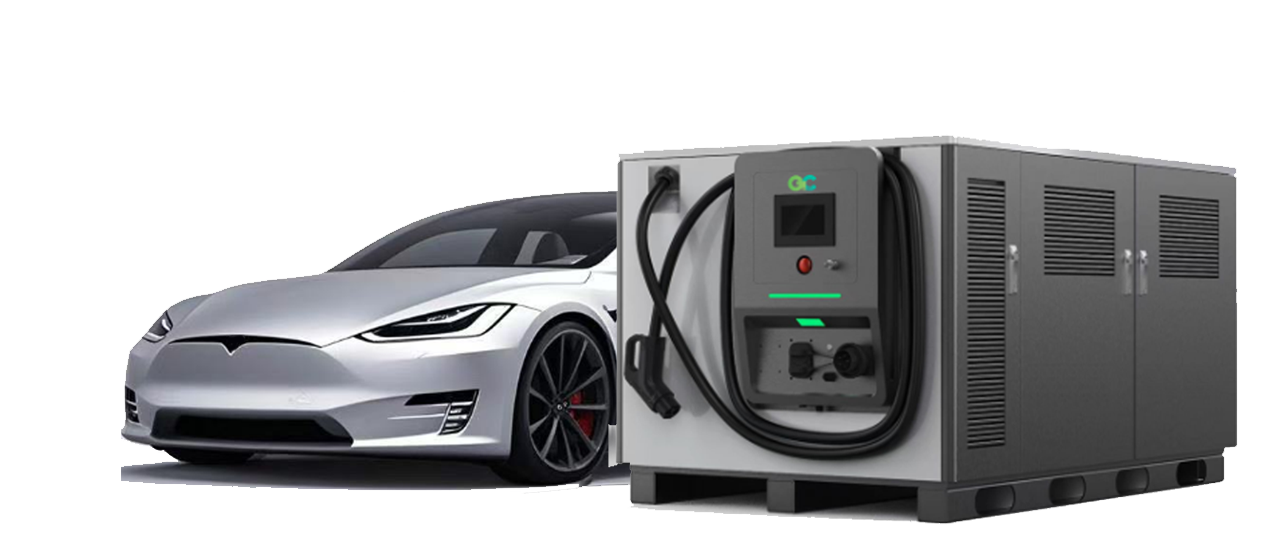

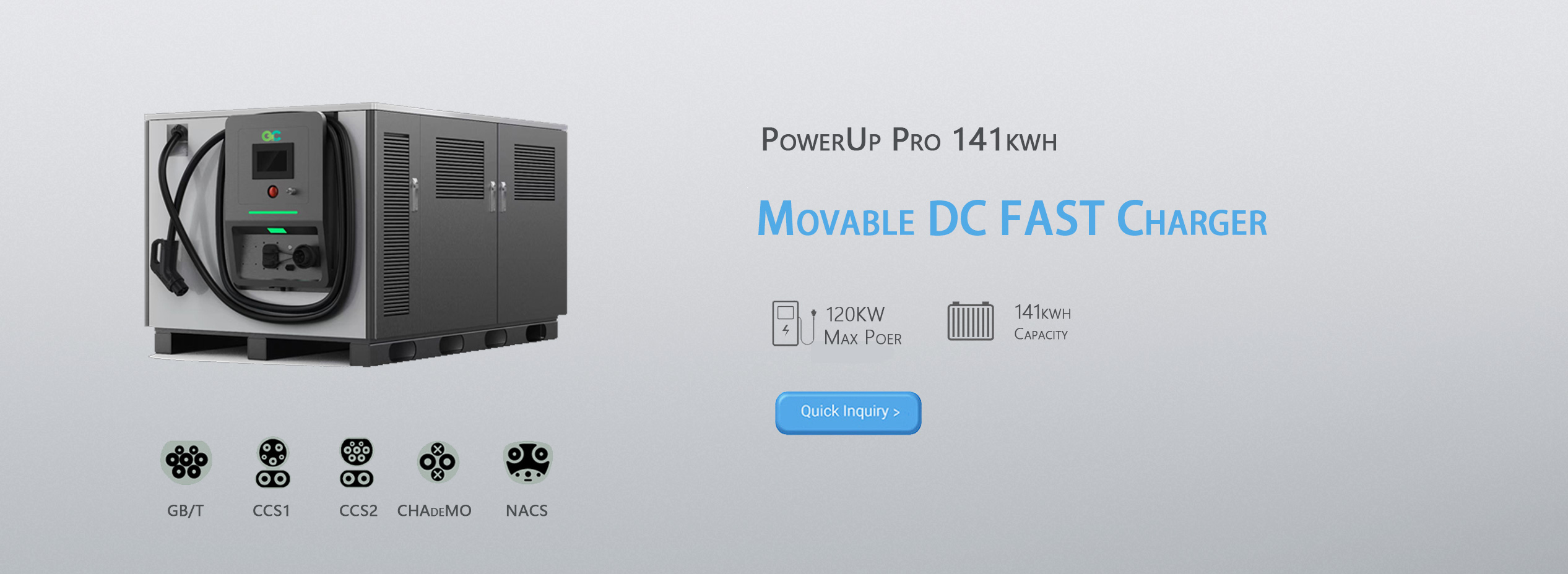

141kWh Heavy-Duty Mobile Charging
141kWh mobile DC fast charger with 120kW output for fleet support, temporary charging, off-grid sites, and emergency response.
-

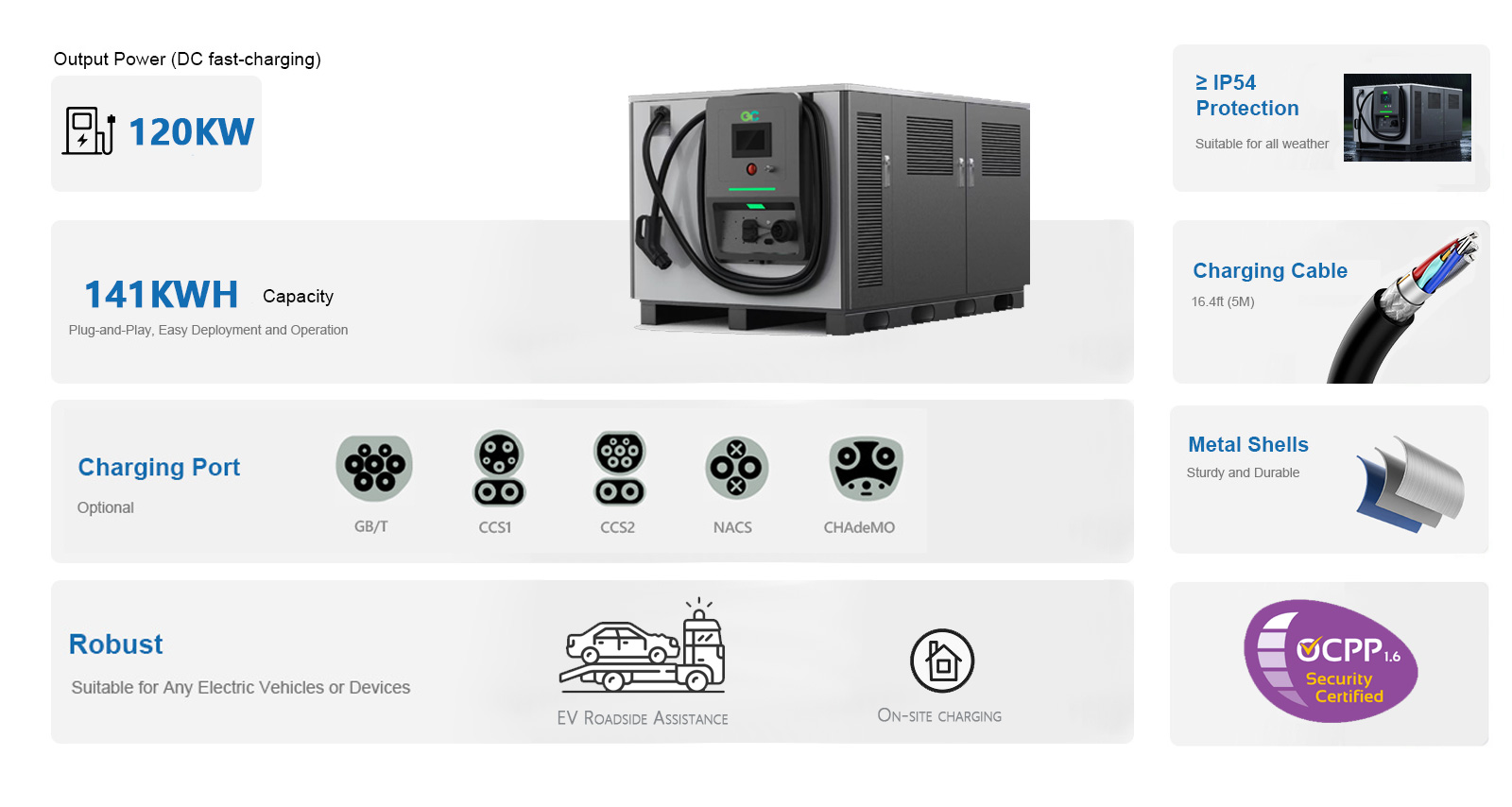

141kWh Battery | 120kW DC Output | CCS1 / CCS2 Available | DC 200–1000V | IP54
-
141kWh battery capacity with 120kW DC output
-
Liquid cooling for stable operation
-
CCS1 / CCS2 connector options
-
Suitable for fleets, temporary sites, and off-grid use
-
Flexible charging where fixed stations are limited
Main Parameters
Category
ltem
Technical Parameters
Charging pile parameters Rated power 141KWH Temperature control scheme Liquid Cooling Charging gun output power 120KW Charging gun output current 0-250A Charging gun output voltage range (Vdc) DC200V~1000V Communication protocol OCPP 1.6J Charging method DC input 120KW AC input AC380V20KW Other parameters Operating temperature range -10℃~60℃ Protection level ≥IP54 Dimensions (L*W*H) 1900*1200*1118mm Weight 1600Kg Payment system VPOS/VISA/ MASTER/OCPP1.6J Gun line length 7M -
