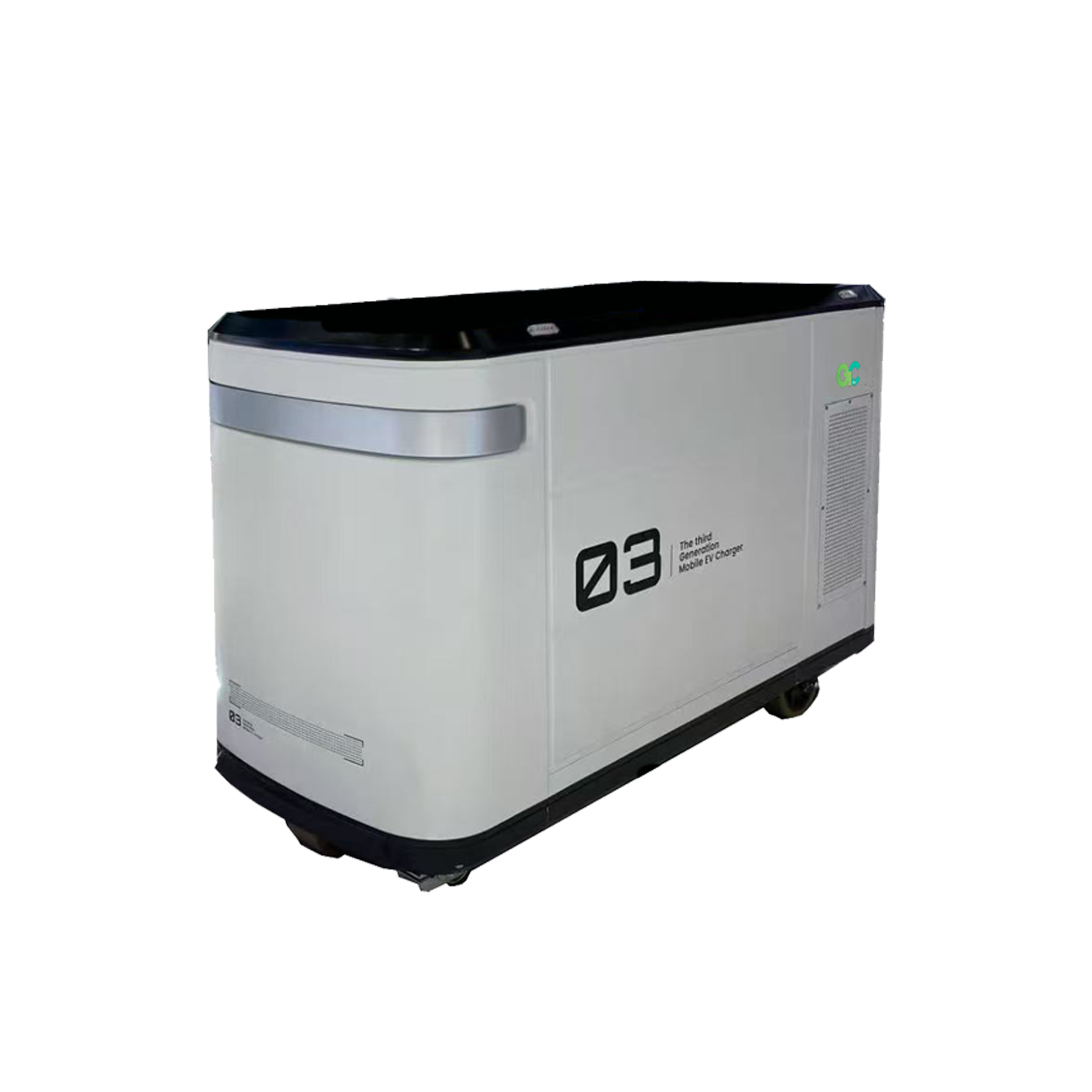

iTrailer

KEY FEATURES

U.S. Market Ready

UL-certified

Suitable for U.S. commercial projects

Smart Operation

Touch screen control

OCPP 1.6J support

Remote Mobility

Remote control driving

Can pass speed bumps

MAIN PARAMETERS

  • 209kWh UL Mobile Charging



    UL-certified mobile DC fast charger for U.S. commercial charging service, temporary charging, and mobile deployment.

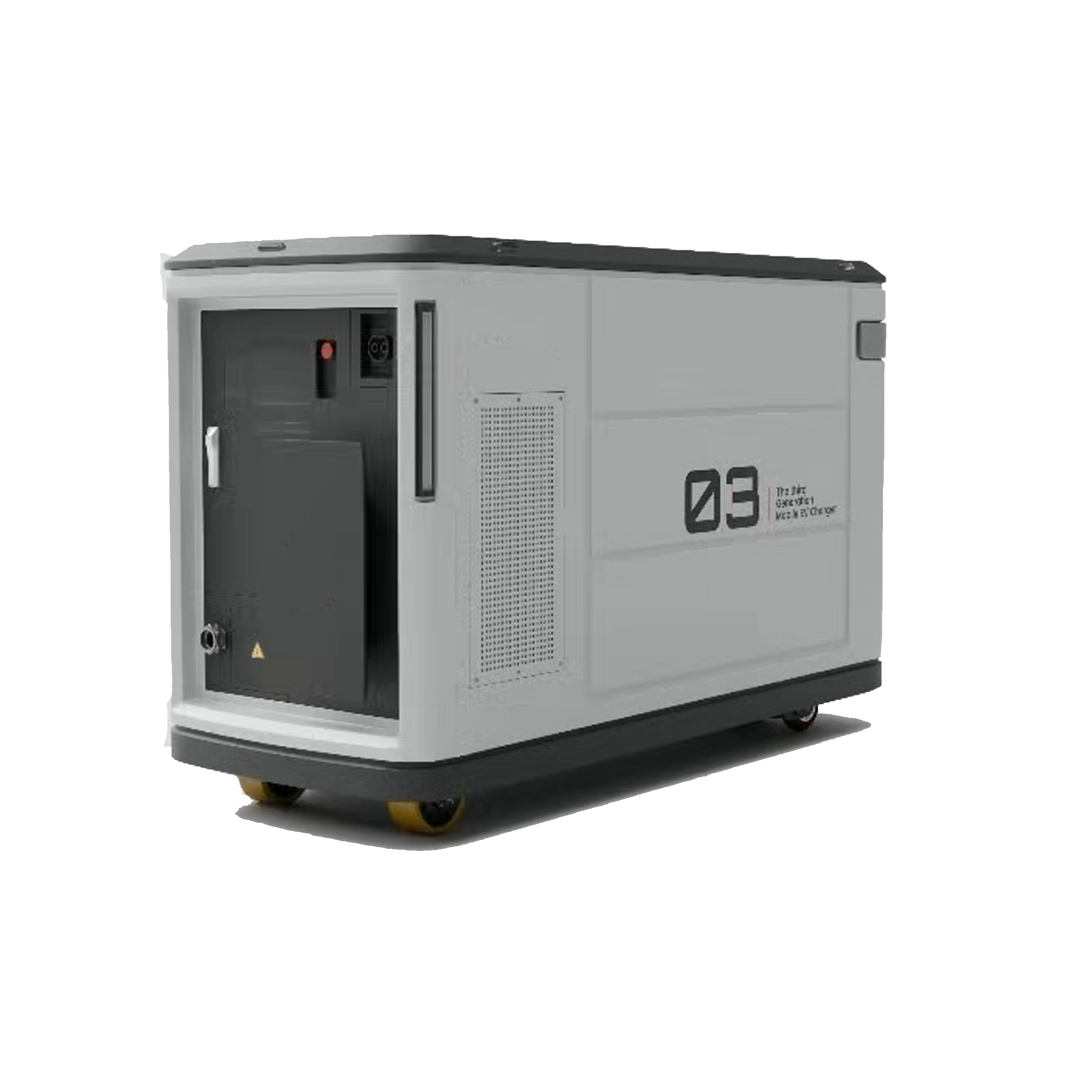

    charging vehicle





    • 209kWh Battery | UL Certified | Remote Control | OCPP 1.6J | Smart Service

    • UL-certified for U.S. market deployment

    • Suitable for commercial charging operators

    • Remote control for flexible movement

    • OCPP 1.6J support

    • Built for mobile charging service











    Main Parameters

    Category

    ltem

    Technical Parameters

    Charging pile parameters Rated power 205KWH
    Temperature control scheme Liquid Cooling
    Charging gun output power 120KW
    Charging gun output current 0-250A
    Charging gun output voltage range (Vdc) DC200V~1000V
    Communication protocol OCPP 1.6J
    Charging method DC input 120KW
    AC input  AC380V
    Other parameters Operating temperature range -20℃~50℃
    Protection level ≥IP54
    Dimensions (L*W*H) 2100*1100*1500mm
    Weight 2300Kg
    Payment system VPOS/VISA/ MASTER/OCPP1.6J
    Gun line length 7M
    Maximum speed 4KM/H
    Maximum climbing grade 0.08
