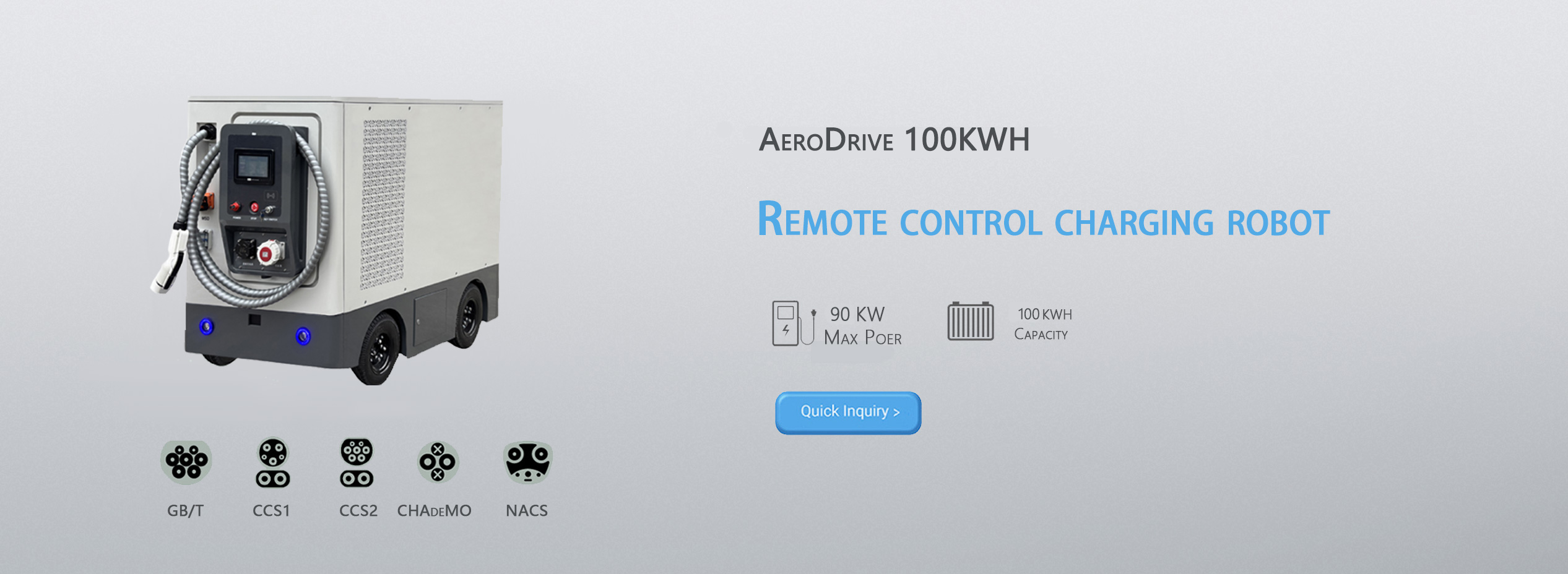

iTrailer

KEY FEATURES

Easy Deployment

Quick installation

Low maintenance

Compatible with multiple EV models

Reliable Protection

IP54-rated protection

IP54-rated protection Stable operation

Remote Mobility

90kW DC fast charging

Remote-control chassis

MAIN PARAMETERS

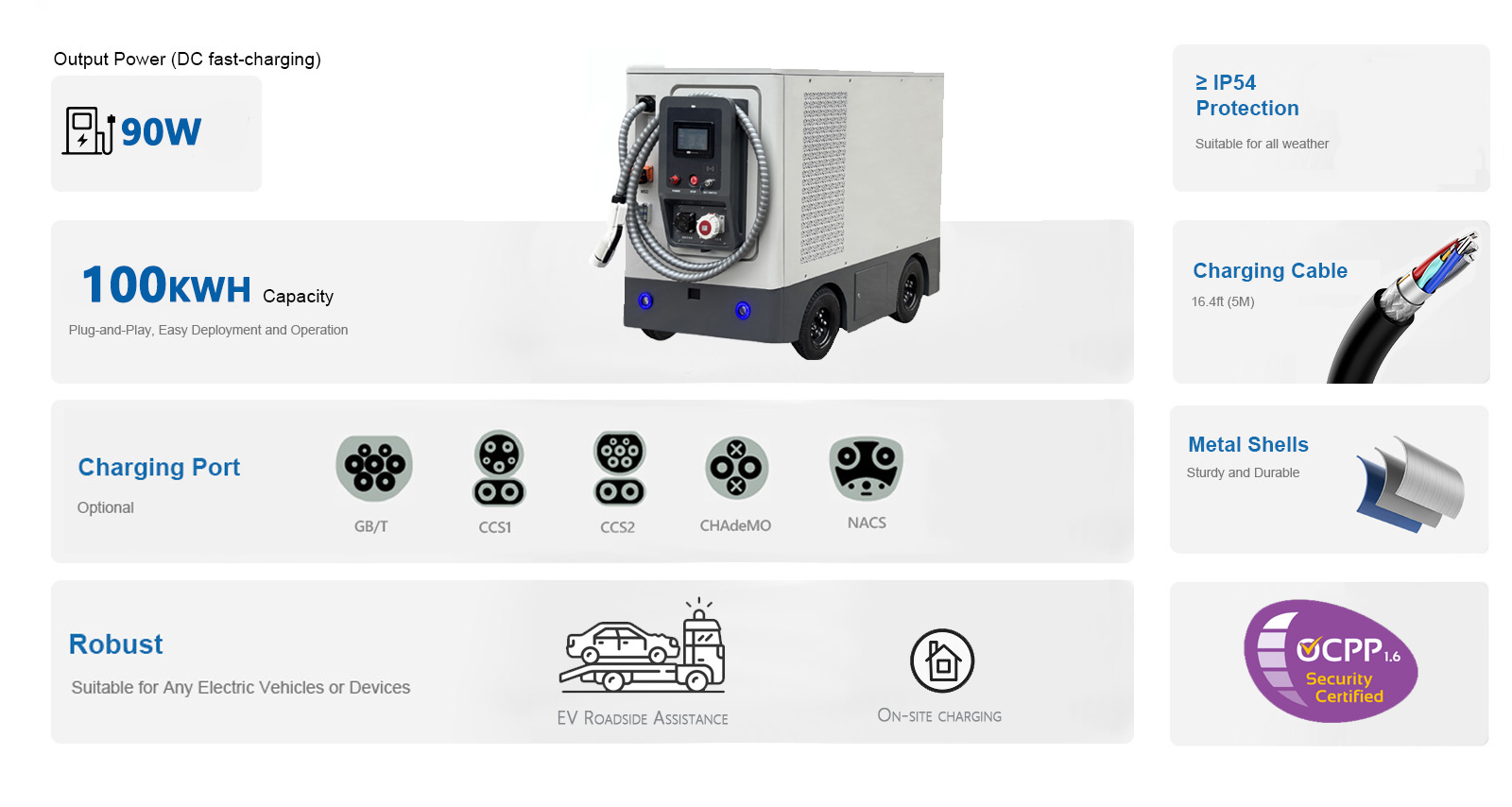

  • 100kWh Remote Mobile Charging



    100kWh mobile DC fast charger with remote-control chassis for parking lots, temporary charging, and on-site EV support.

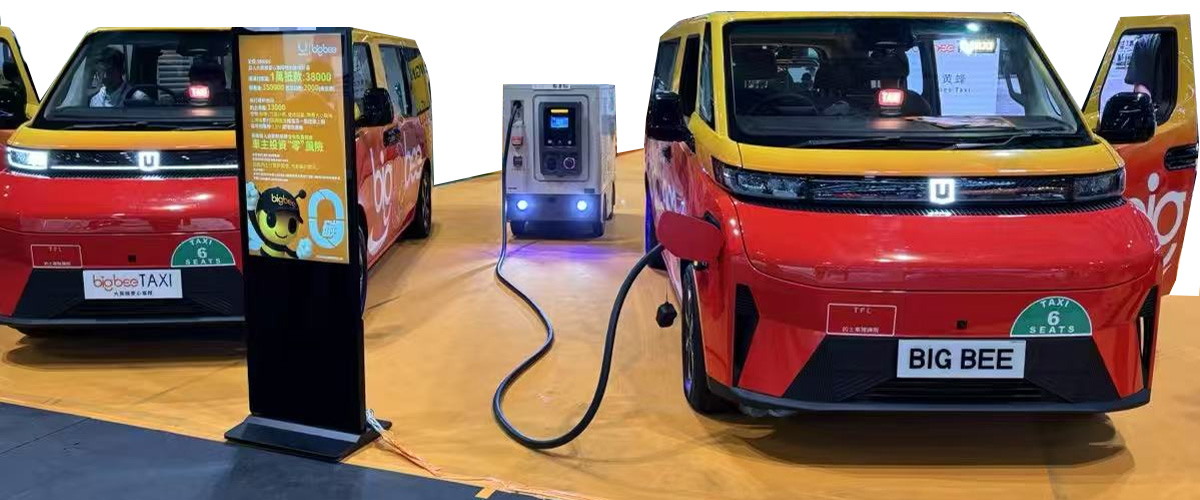

    charging vehicle





    • 100kWh Battery | 90kW DC Output | Remote Control | Liquid Cooling | OCPP 1.6

    • 100kWh battery capacity with 90kW DC output

    • Remote-control chassis for flexible movement

    • Liquid cooling for stable operation

    • OCPP 1.6 support

    • Suitable for parking and temporary charging use











    Main Parameters

    Category

    ltem

    Technical Parameters

    BATTERY SYSTEM SPECIFICATIONS Battery Capacity 100kwh
    Battery Chemistry LiFePO4
    Operating Temperature Charge: 0°C to 60°C Discharge: -30°C to 60°C
    Cycle Life ≥ 4000 times (80% DOD)
    Cooling method Liquid cooling
    Battery recharge mode By Grid：400Vac (3P+N+PE) or 480Vac (3P+N+PE) By DC fast charging station：Can be configured to be charged via CCS 1, CCS 2, GB/T or CHAdeMO
    EV CHARGING SPECIFICATIONS Output Power 90kw (one gun)
    Output Voltage 200 - 1000 VDC (0 ~ 200A)
    DC Charging gun Can be configured with one charging cable -CCS 1, CCS 2, GB/T or CHAdeMO
    Charging Cable Length 7 Meter
    Communication Protocol OCPP 1.6
    GENERAL SPECIFICATIONS Driving mode Remote control driving
    Display Screen 7-inch touch screen
    Operating temperature English(Customizable)
    IP Rating IP54
    Emergency Stop Button Yes
    Dimensions (L x W x H) 2034.5*920*1490.5mm
    Weight 1420 KG
    CHASSIS SPECIFICATIONS Wheelbase (mm) 1100.0
    Weight (kg) 250.0
    Load capacity (KG) 1200.0
    Minimum Ground Clearance(mm) 100.0
    Parking gradient (%) : 25.0
    Maximum gradient with full load (%) 20.0
    Minimum Turning Radius (m) 2.5
    Drive type Rear wheel drive
    Front and Rear brake type Drum brake
    Parking brake type EPB electronic parking (rear wheels with wheel speed sensor)
    Drive Motor Power (KW) 3.0
    Full load range (KM) Varies with the capacity of the vehicle's energy storage battery
    Maximum speed (KM/H) 35.0
    Battery type Lithium iron phosphate
    Voltage platform (V) 72V/320V
    Battery capacity (Ah) Varies with vehicle storage battery capacity
    Control communication mode CAN2.0 B
